Description
- Solenoid valve 2 way normally closed
- Direct acting poppet type
Construction
- Body Brass
- Armature tube Brass
- Plunger and core AISI 430FR
- Springs AISI 302
- Seal material FPM
Features
- Maximum allowable pressure PS 50bar
- Maximum fluid viscosity 25cSt (mm2/s)
- Ambient temperature: from -10°C to +80°C according to the coil
- Universal mounting position

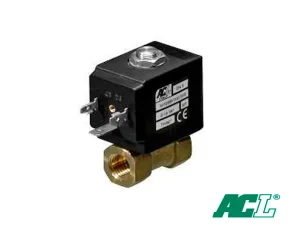

| Modelo W106 Poppet |
|
| USO: |
Industrial |
-
Description
- Solenoid valve 2 way normally closed
- with servo-assisted diaphragm
Construction
- Body Brass
- Armature tube Brass
- Plunger and core AISI 430FR
- Springs AISI 302
- Seal material NBR – FPM – EPDM
Features
- Minimum differential pressure 0.15÷3bar
- Maximum allowable pressure PS 20bar
- Maximum fluid viscosity 25cSt (mm2/s)
- Ambient temperature: from -10°C to +80°C
- According to the coil
- Preferred mounting position with vertical coil above
Options
- Electroless nickel plating
- Certified coils
On Request

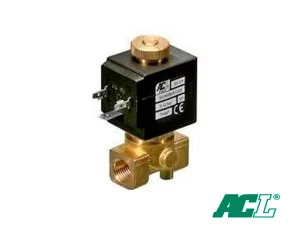

| Modelo 206 Acción Directa NA |
|
| USO: |
Industrial |
-
Description
- Solenoid valve 2 way normally open
- Direct acting poppet type
Construction
- Body Brass
- Armature tube Brass
- Plunger and core AISI 430FR
- Springs AISI 302
- Seal material NBR – FPM – EPDM
Features
- Maximum allowable pressure PS 50bar
- Maximum fluid viscosity 25cSt (mm2/s)
- Ambient temperature: from -10°C to +80°C according to the coil
- Universal mounting position
Options
- Stainless steel armature tube
- Electroless nickel plating
- Certified coils
On Request
- Versions for use with fluid temperature at -40°C
- Manual override
| Modelo 206 Acción Directa NA |
|
| USO: |
Industrial |
-
Description
- Solenoid valve 2 way normally closed
- with servo-assisted diaphragm
Construction
- Body and cover Brass
- Armature tube Stainless steel
- Plunger and core Stainless steel
- Springs Stainless steel
- Seal material NBR
- FPM-EPDM-FEATURES
- Minimum differential pressure 0.15 bar
- Maximum allowable pressure* 25 bar
- Maximum luid viscosity 25cSt (mm2/s)
- Ambient temperature: with class F coil -10°C +55°C
- with class H coil -10°C +80°C

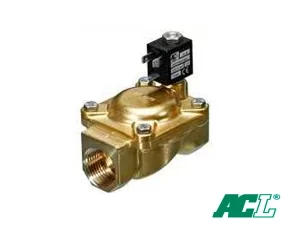

| Modelo 107 Membrana Uso General |
|
| USO: |
Industrial |
-
Construction
- Body Brass
- Armature tube AISI 303
- Plunger and core AISI 430FR
- Springs AISI 302
- Seal material NBR – FPM – EPDM – PTFE
Features
- Maximum allowable pressure PS 100bar
- Maximum fluid viscosity 25cSt (mm2/s)
- Ambient temperature: from -10°C to +80°C according to the coil
- Universal mounting position
Options
- Manual override
- Electroless nickel plating
- Stainless steel seat insert (up to Ø4.5)
- Versions for use with industrial oxygen
- Certified coils

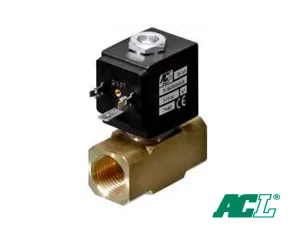

| Modelo 106 Acción Directa |
|
| USO: |
Industrial |
-
Construcción
- Solenoid valve series 106 with:
- Filter ball valve in chromium plated brass and stainless steel strainer, NBR seal connection : inlet G1/2”, outlet G3/8” or G1/2”
- Timer ACL mod.11303000
- Connector DIN 43650A code 1034900A FEATURES
- Maximum allowable pressure PS 50bar
- Maximum fluid viscosity 25cSt (mm2/s)
- Ambient temperature: from -10°C to +80°C according to the coil
- Protection class IP65
- Electroless nickel plating on the valve body overmoulded DIN cable connector certified coils

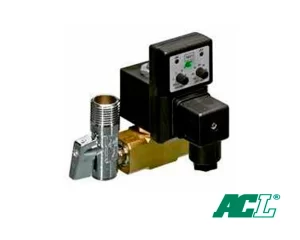

| Drenador Automático |
|
| USO: |
Industrial |
