Description

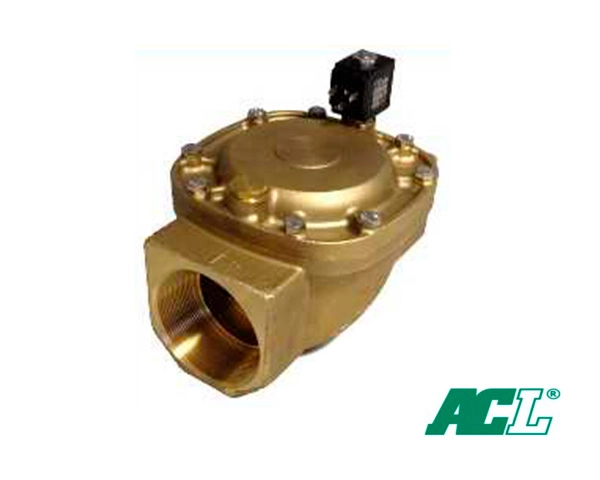

• Solenoid valve 2 way normally closed
• with servo-assisted diaphragm

Construction

• Body Brass
• Armature tube Brass
• Plunger and core AISI 430FR
• Springs AISI 302
• Seal material NBR – FPM – EPDM

Features

• Minimum differential pressure 0.15÷3bar
• Maximum allowable pressure PS 20bar
• Maximum fluid viscosity 25cSt (mm2/s)
• Ambient temperature: from -10°C to +80°C
• According to the coil
• Preferred mounting position with vertical coil above

Options

• Electroless nickel plating
• Certified coils

On Request

• Manual override
